概述Overview： （此概述仅作为参考，具体制作要求按买方要求生产This overview is for reference only. Specific production requirements will be based on the buyer's requirements）

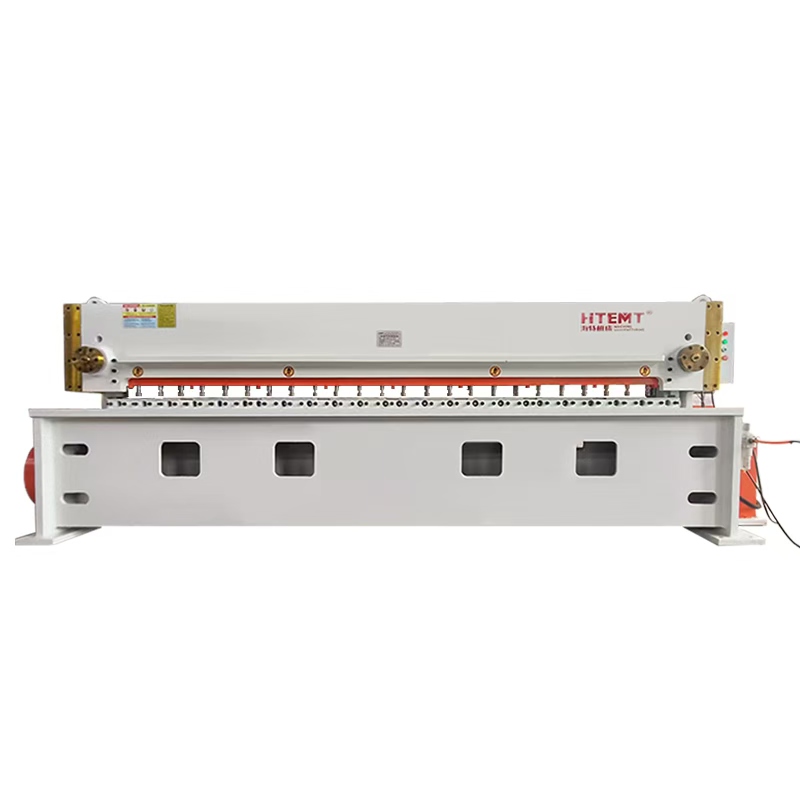

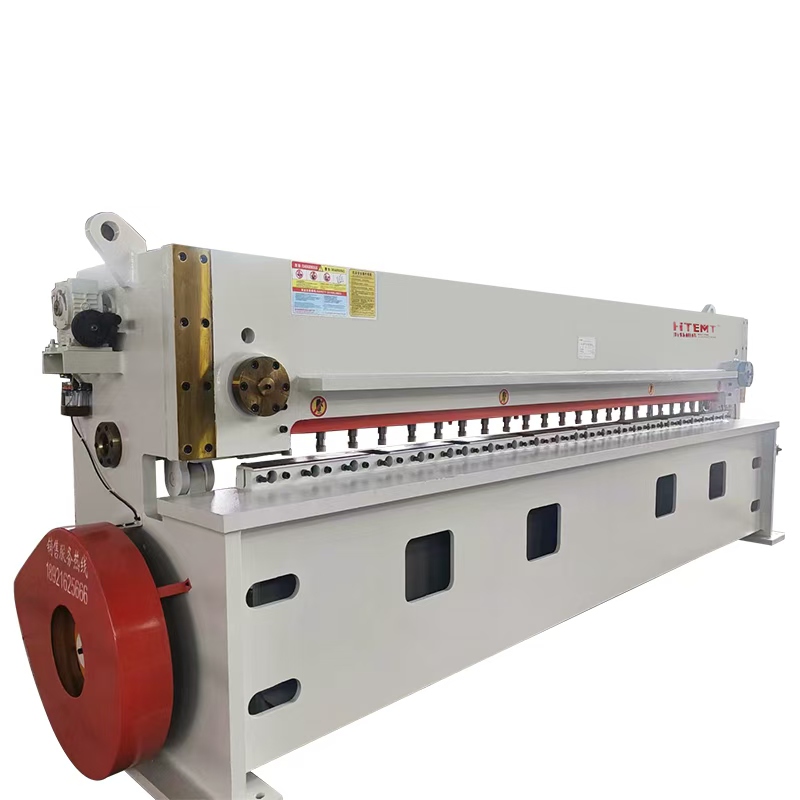

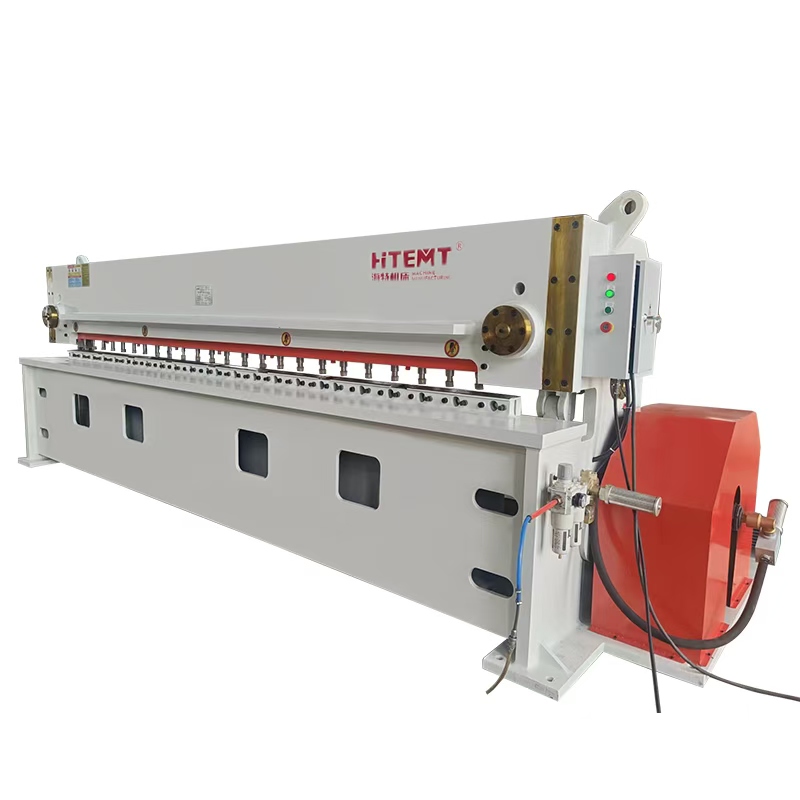

本机器主要用于剪切板厚为0.5—3，宽度为不大于4000mm的钢板，被剪切板料强度以450N/mm2为计算依据，如需剪切其它大于该强度的板料时应相应减薄被剪板料的最大厚度。本机机身、上下刀架采用钢板焊接结构，整体回火消除变形应力，龙门结构式上传动，工作平稳可靠，刚性好、噪音低。
This machine is mainly used for cutting steel plates with a thickness of 0.5-3 and a width not exceeding 4000mm. The strength of the sheared plate is calculated based on 450N/mm2. If other plates with a strength greater than this need to be sheared, the maximum thickness of the sheared plate should be correspondingly reduced. The body and upper and lower knife frames of this machine are welded with steel plates, and the overall tempering eliminates deformation stress. The gantry structure is used for upper transmission, which works smoothly and reliably, with good rigidity and low noise.
机床主要技术参数：Main technical parameters of the machine tool:
|
规格Specifications |
3*4000 |
|
剪切厚度
Shear thickness
mm |
中碳钢 Medium carbon steel 45kg/mm² |
3 |
|
不锈钢 Stainless steel 60kg/mm |
1.5 |
|
铝板 Aluminum plate 30kg/mm |
4 |
|
剪切长度 Cut length mm |
4000 |
|
刀片长度 Blade length mm |
4020 |
|
上刀剪切角度 Cutting angle of the upper blade |
20 |
|
行程次数（空载连续剪切）/分钟
Number of trips (unloaded continuous cutting)/minute |
≥60 |
|
主电动功率 Main electric power（KW) |
15 |
|
气动离合器型号 Pneumatic clutch model |
LZ500 |
|
中心高度（根据客户要求）
Center height (according to customer requirements)
MM |
910 |
