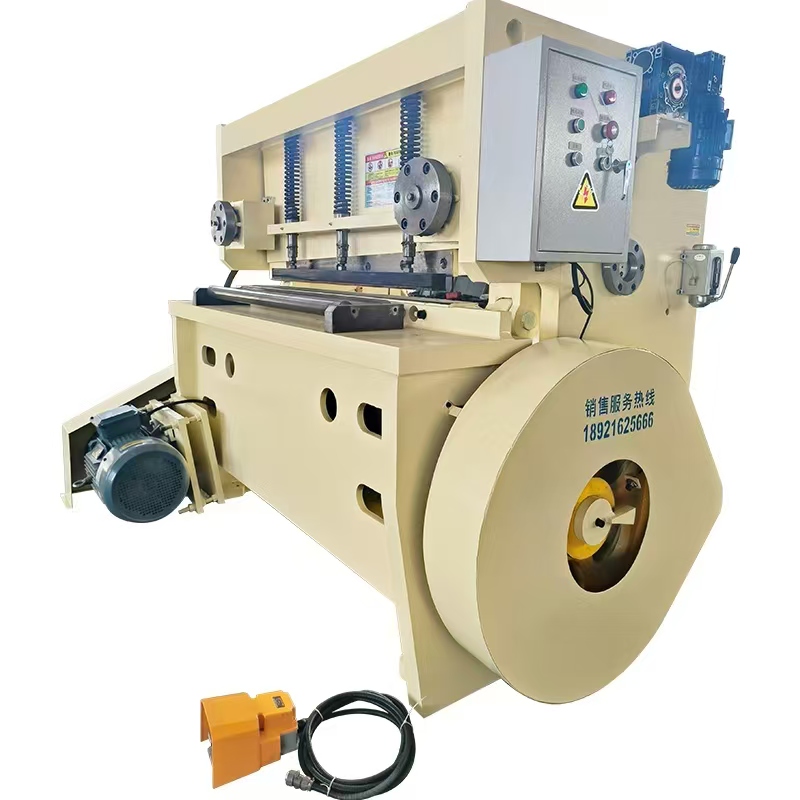

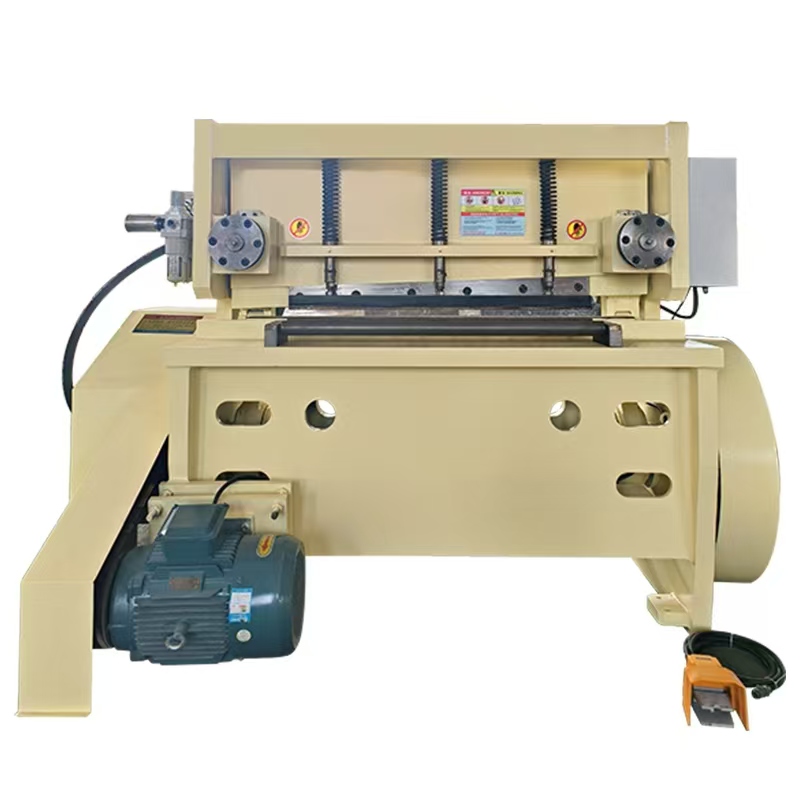

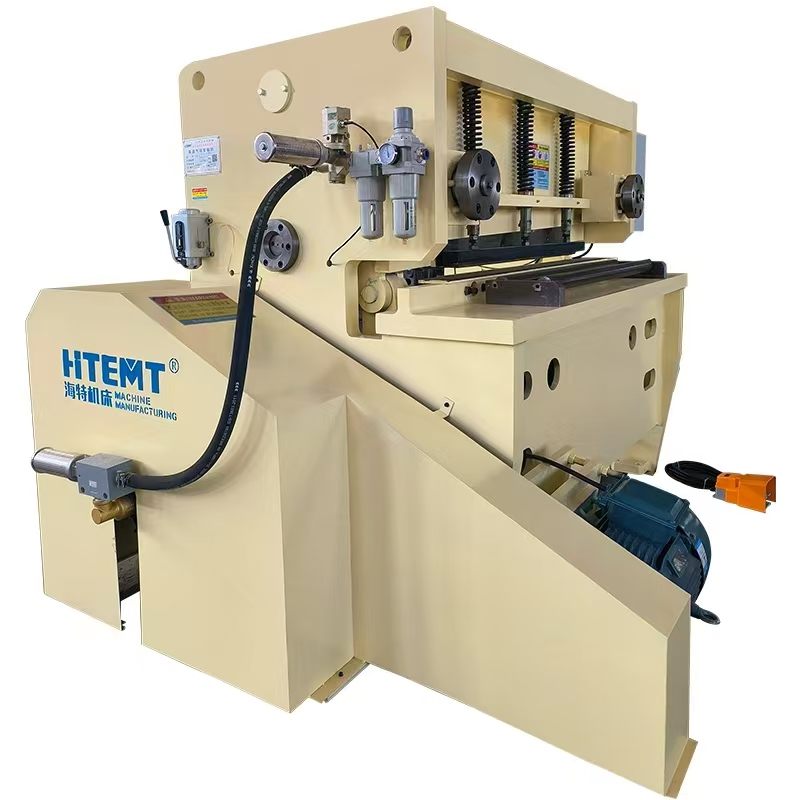

气动剪板机采用由下往上V型刀剪切方式。主要用于剪切板厚为0.5-3mm宽度为不大于1600mm的钢板，被剪切板料强度以450N/mm2为计算依据，如需剪切其它大于该强度的板料时应相应减薄被剪板料的最大厚度。本机机身、上下刀架采用钢板焊接结构，整体回火消除变形应力，龙门结构式下传动，工作平稳可靠，刚性好、噪音低。
The pneumatic shearing machine adopts a V-shaped knife cutting method from bottom to top. Mainly used for cutting steel plates with a thickness of 0.5-3mm and a width not exceeding 1600mm. The strength of the sheared plate is calculated based on 450N/mm2. If it is necessary to cut other plates with a strength greater than this, the maximum thickness of the sheared plate should be correspondingly reduced. The body and upper and lower knife frames of this machine are made of steel plate welded structure, with overall tempering to eliminate deformation stress. The gantry structure type lower transmission ensures smooth and reliable operation, good rigidity, and low noise.
气动剪板机技术参数：
Technical parameters of pneumatic shearing machine:
|
规格 Specifications |
3×1600 |
|
|
|
剪切
厚度
Shear thickness
(mm) |
中碳钢
Medium carbon steel
45kg/mm² |
3 |
|
|
|
不锈钢
Stainless steel
60kg/mm² |
1.5 |
|
|
|
铝板
Aluminum plate
30kg/mm² |
4 |
|
|
|
剪切长度Cut length mm |
1500 |
|
|
|
刀片长度Blade length mm |
1620 |
|
|
|
上刀剪切角度
Cutting angle of the upper blade |
1.5 |
|
|
行程次数（连续剪切）/分钟
Number of trips (continuous cutting) per minute |
≥60 |
|
|
|
主电动机功率
Main motor power
（KW） |
7.5 |
|
|
气动离合器型号
Pneumatic clutch model |
LZ380 |
|
|
中心高度（根据客户要求）
Center height (according to customer requirements)
(mm) |
1150 |
|
|
