性能特点:
→ 整机钢板焊接结构，采用振动时效消除应力，机器强度高、刚性好。
→ 液压双油缸上传动、机械挡块，扭轴同步，运行平稳可靠，精度高。
→ 后挡料距离及滑块行程采用电动调节及手动微调方式，并配有数字显示装置，使用方便快捷。
→ 上模配有扰度补偿装置，250吨和长度4000mm以上机床可采用下扰度补偿机构。
Performance characteristics:
The whole machine has a welded steel plate structure, which uses vibration aging to eliminate stress. The machine has high strength and good rigidity.
Hydraulic dual cylinder transmission, mechanical stopper, synchronized torsion shaft, smooth and reliable operation, high precision.
The distance of the rear material and the stroke of the slider are adjusted electrically and manually, and equipped with a digital display device, making it easy and fast to use.
The upper mold is equipped with a disturbance compensation device, and machine tools with a length of over 4000mm and 250 tons can use a lower disturbance compensation mechanism.
技术参数:Technical Specifications:
|
规格
Model |
公称压力
Nominal
Pressure |
工作台长度
Length of
Woking table |
立柱间距离
Distance between
Uprights |
喉口深度
Throat
Dephts |
滑块行程
Ram
Stroke |
最大开启高度
Open height |
主电机功率
Motor power |
外型尺寸
Overrall dimensions |
|
Kn |
Mm |
Mm |
Mm |
Mm |
Mm |
Kw |
Mm |
|

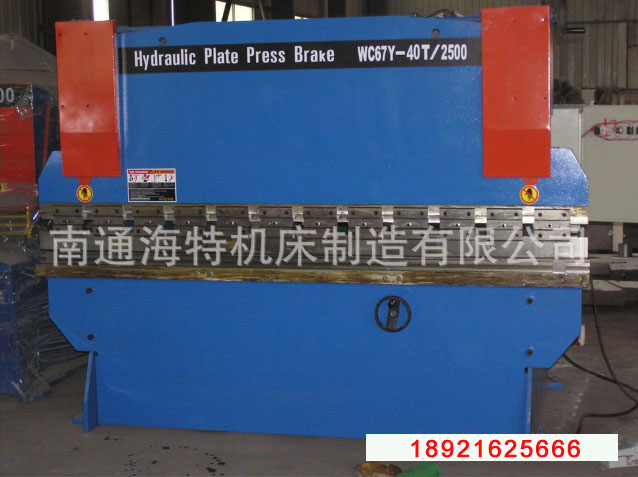

40/2500 |
400 |
2500 |
2000 |
150 |
100 |
315 |
4 |
2050×1380×2100 |
|
63/2500 |
630 |
2500 |
2000 |
260 |
120 |
315 |
5.5 |
2450×1250×2120 |
|
63/3200 |
630 |
3200 |
2500 |
260 |
100 |
370 |
5.5 |
3160×1260×2145 |
|
80/3200 |
800 |
3200 |
2500 |
260 |
120 |
380 |
7.5 |
3260×1450×2580 |
所有产品价格均为普机价格，如需特殊配置及数控装置价格另议！ |
