产品特点:

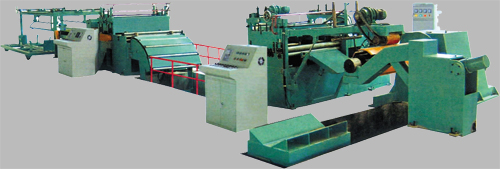

板料开卷校平剪切线具有高效定尺剪切钢板之功能,可将各种卷板材料经开卷、整平、定尺、分条、同时剪切成不同规格板材,分类堆放整齐。对于大量使用不同规格板材的企业,能够显著地增加产量,降低成本,保证质量,提高生产效率。在剪切线之后可配置数控回转头压力机,双动薄板拉伸机,可加工零价一次成型,是现代企业必不可少的高效加工机械。
TQ44K系统数控板料开卷校平剪切线,主要用途是将冷轧、热轧钢卷板校剪切成各规格的定尺板材。适用于车辆制造、家用电器、开关电器、钢结构办公用品、不锈钢厨房用品、机器制造等行业。
Product Features:
The sheet material uncoiling, leveling, and cutting line has the function of efficiently cutting steel plates to a fixed length. It can uncoiling, leveling, sizing, slitting, and cutting various coil materials into different specifications of plates, and classify and stack them neatly. For enterprises that extensively use boards of different specifications, it can significantly increase production, reduce costs, ensure quality, and improve production efficiency. After the cutting line, a CNC rotary head press and a double action thin plate stretching machine can be configured, which can process zero price one-time forming and is an essential high-efficiency processing machinery for modern enterprises.
The TQ44K system CNC sheet metal uncoiling, leveling, and cutting line is mainly used to cut cold-rolled and hot-rolled steel coils into various specifications of fixed length sheets. Suitable for industries such as vehicle manufacturing, household appliances, switchgear, steel structure office supplies, stainless steel kitchen supplies, and machine manufacturing.
|
规格 Specifications |
T44QK-1.5×1500 |
T44QK-2.0×1350 |
T44QK-3×1600 |
T44QK-3×1200 |
T44QK-5×1600 |
|
剪切最大板宽 Maximum cutting width of the board |
1500 |
1350 |
1600 |
1200 |
1600 |
|
剪切最大板厚
Maximum cutting thickness |
1.5 |
2.0 |
3 |
3 |
5 |
|
剪切长度范围
Range of cutting length |
10.0-9999.9 |
10.0-9999.9 |
10.0-9999.9 |
10.0-9999.9 |
10.0-9999.9 |
|
剪切精度
Shear accuracy |
±0.05 |
±0.05 |
±1.0 |
±1.0 |
±1.0 |
|
整平轮数量
Number of leveling wheels |
≥5 |
≥5 |
≥5 |
≥5 |
≥5 |
|
整平轮外径
Outer diameter of leveling wheel |
110 |
125 |
135 |
135 |
180 |
|
最大分条数目
Maximum number of segments |
4 |
4 |
4 |
4 |
2 |
|
送料速度
feeding speed |
35000 |
30000 |
25000 |
20000 |
25000 |
|
主电机功率
Main motor power |
11 |
11 |
22 |
22 |
22 |
|
重量weight(Kg) |
18000 |
19000 |
26000 |
26000 |
40000 |
