QC12K系列数控液压摆式剪板机-采用全钢焊接结构(剪板机墙板、工作台、刀架体经二次回火工艺

产品展示

QC12K系列数控液压摆式剪板机

产品特点：
　　主机采用QC12Y系列液压摆式剪板机。
　　数控系统选用国内外名牌专用剪板机数控系统。
　　后挡料电机选用进口交流伺服电机。
　　后挡料滚珠丝杠+直线导轨。
　　根据用户需要选配数控系统。
Product Features:
The host adopts QC12Y series hydraulic swing shearing machine.
The CNC system adopts domestic and foreign famous brand specialized shearing machine CNC system.
The rear material blocking motor adopts imported AC servo motor.
Rear material ball screw+linear guide rail.
Select CNC system according to user needs.


机床背部采用安全护栏 The back of the machine tool is equipped with a safety barrier	剪切刀口采用栅栏保护 The cutting edge is protected by a fence	深候口设计，可剪切超宽钢板 Deep waiting mouth design, capable of cutting ultra wide steel plates

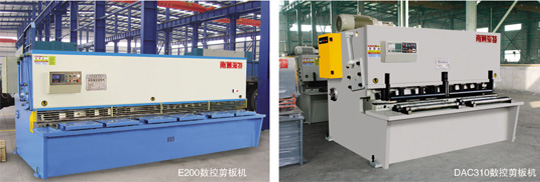

E18数控系统（华德尔）
1、既满足机床数控功能，又能满足精度控制灯求；
2、采用直接控制电机的模式，操作简单，安装方便、维修简易三个目的。
3、可输入1-9个工步，系统可以单次工作，也可循环控制精度为0.1mm.
E18 CNC System (Walder)
1. It can meet both the CNC function of machine tools and the precision control requirements of lamps;
2. Adopting a direct control mode for the motor, it has three objectives: easy operation, convenient installation, and easy maintenance.
3. It can input 1-9 steps, and the system can work single time or cycle control with an accuracy of 0.1mm

DAC310
1、高清晰LCD显示275×45像素；
2、后挡料的控制；刀口间隙的控制；剪切行程的控制；
3、后档料实际位置与编程值同时显示；
4、剪切计数：100个程序步；面板式安装；
5、伺服控制/变频调整控制/双速交流电机控制。
DAC310
1. High definition LCD display with 275 × 45 pixels;
2. Control of rear blocking materials; Control of blade clearance; Control of cutting stroke;
3. The actual position of the rear material is displayed simultaneously with the programmed value;
4. Cut count: 100 program steps; Panel installation;
5. Servo control/Variable frequency adjustment control/Dual speed AC motor control.

技术参数：Technical Specifications:

型号 model	剪板尺寸 (厚×宽) Cutting board size (Thickness x Width)	剪切角 Shear angle	行程次数 number of trips	后挡料架调节范围 Adjustment range of rear material rack	主电机 main motor	外形尺寸 (长×宽×高) Overall dimensions (Length x Width x Height)
型号 model	mm	(°)	min^-1	mm	KW	mm
4×3200	4×3200	1°30′	18	20～600	5.5	3840×1675×1600
6×2500	6×2500	1°30′	18	20～600	7.5	3130×1530×1600
6×3200	6×3200	1°30′	14	20～600	7.5	3840×1675×1620
6×4000	6×4000	,1°30′	14	20～600	7.5	4630×1850×1700
6×5000	6×5000	1°30′	10	20～800	18.5	5660×2050×1950
6×6000	6×6000	1°30′	10	20～800	18.5	6700×2300×2300
8×2500	8×2500	1°30′	14	20～600	11	3130×1530×1600
8×3200	8×3200	1°30′	10	20～600	11	3840×1675×1620
8×4000	8×4000	1°30′	8	20～600	11	3840×1850×1700
8×5000	8×5000	1°30′	7	20～800	18.5	4630×2050×1950
8×6000	8×6000	1°30′	6	20～800	18.5	6750×2330×2230
10×2500	10×2500	1°30′	14	20～800	15	3130×1580×1800
10×3200	10×3200	1°30′	12	20～800	15	3840×1725×1850
10×4000	10×4000	1°30′	12	20～800	15	4630×1900×1850
12×2500	12×2500	1°30′	16	20～800	18.5	3235×2045×1850
12×3200	12×3200	1°30′	14	20～800	18.5	3945×2227×1935
12×5000	12×4000	1°30′	14	20～800	18.5	4695×2227×2115
12×5000	12×5000	1°30′	7	20～1000	45	6100×3370×2200
12×6000	12×6000	1°30′	6	20～1000	45	7100×3370×3050
12×8000	12×8000	1°30′	5	20～1000	45	9100×3575×3050
16×2500	16×2500	2°	16	20～650	18.5	3235×2050×3150
16×3200	16×3200	2°	12	20～800	22	3950×2230×1985
16×4000	16×4000	2°	10	20～800	22	4700×2230×2250
20×2500	20×2500	2°30′	5	20～1000	37	3290×2900×2250
20×3200	20×3200	2°30′	4	20～1000	37	4000×3100×2450
20×4000	20×4000	2°30′	3	20～1000	37	4750×3300×2600
20×6000	20×6000	2°30′	3	20～1000	75	7050×3480×2800
25×2500	25×2500	2°30′	6	20～1000	45	3500×3150×3050
25×3200	25×3200	2°30′	5	20～1000	45	4200×3150×3500
25×4000	25×4000	2°30′	5	20～1000	45	4850×3300×3500
32×2500	32×2500	3°	5	20～1000	55	3500×3150×3500
32×3200	32×3200	3°	4	20～1000	55	4200×3150×3500
40×2500	40×2500	4°	5	20～1000	75	3600×3300×3200
40×3200	40×3200	4°	3	20～1000	90	4300×3300×3400
50×3000	50×3000	3°	5		90×3	4040×3600×4800
50×6000	50×6000	3°	5		90×5	7040×2800×5100
60×3500	60×3500	3°30′	5		90×4
